M1

by Gieskes

" "

Stereo preset panning mixer that can drive two headphones.

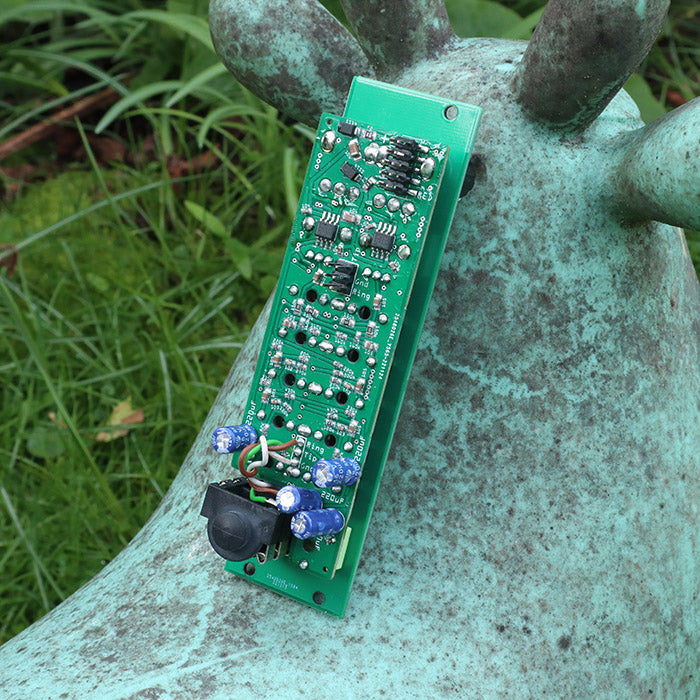

The two stereo outputs send out the same signal and are buffered individually, one Stereo big jack and one Stereo 3.5mm jack.

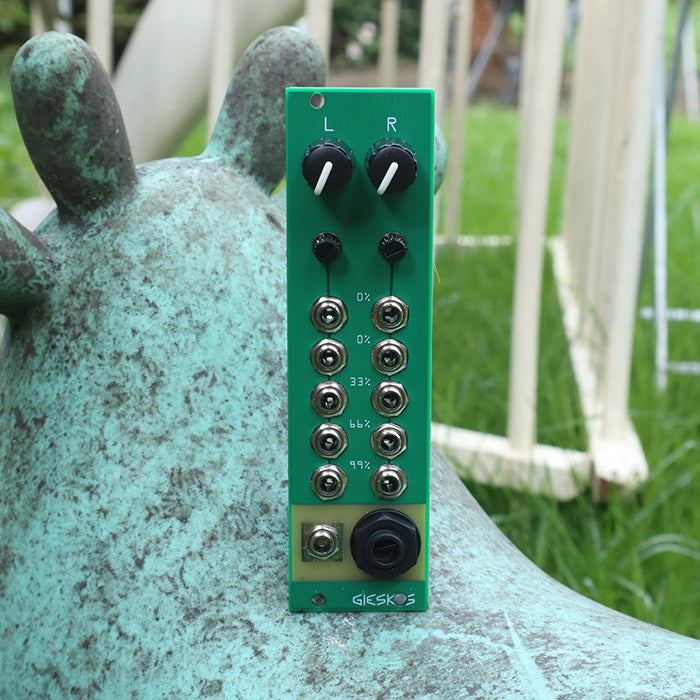

The panning is preset, they will pan according to the jack position (left jack is left side, right jack is right side).
The inputs are passively filtered, the top jacks are passing all signals, but the lower you get the percentage goes up and the more the low frequencies will be cut. The percentage number on the silkscreen gives a indication of how much panning is going on.

The module has a width of 35mm that is 7HP. The depth is 2.5mm from the top panel.
Power consumption is not allot.
