Fénix II PP (Pre-Order)

Lead time is now 2-3 months from completed payment.

You are welcome to now buy with credit card and Paypal.

Please contact us for payment plans.

ALL SHIPPED IN ORDER RECEIVED

We kindly request payment via bank transfer (5% discount). Why is this so? Payments via PayPal or credit card incur fees. For example, if you are from the USA and wish to pay in USD via PayPal, it’s no problem. However, in such cases, we have to pay about 10% in fees. This amounts to approximately 600 USD, which significantly impacts us for a labor-intensive project like the Fénix. Increasing the price should not be the first option. Please contact us to discuss payment via bank transfer.

- Universal PSU Included.

- Discounted Cable Pack Option.

WOOD SIDES AND RACK EARS WILL BE SHORTLY AVAILABLE, and WE WILL CONTACT YOU TO SEE IF YOU WANT TO ADD THEM BEFORE WE START SHIPPING.

WE HAVE NOT INCLUDED SHIPPING IN THE PRICE, WE WILL BILL YOU ACTUAL SHIPPING COST BEFORE SHIPPING FROM THE CARRIER OF YOUR CHOICE.

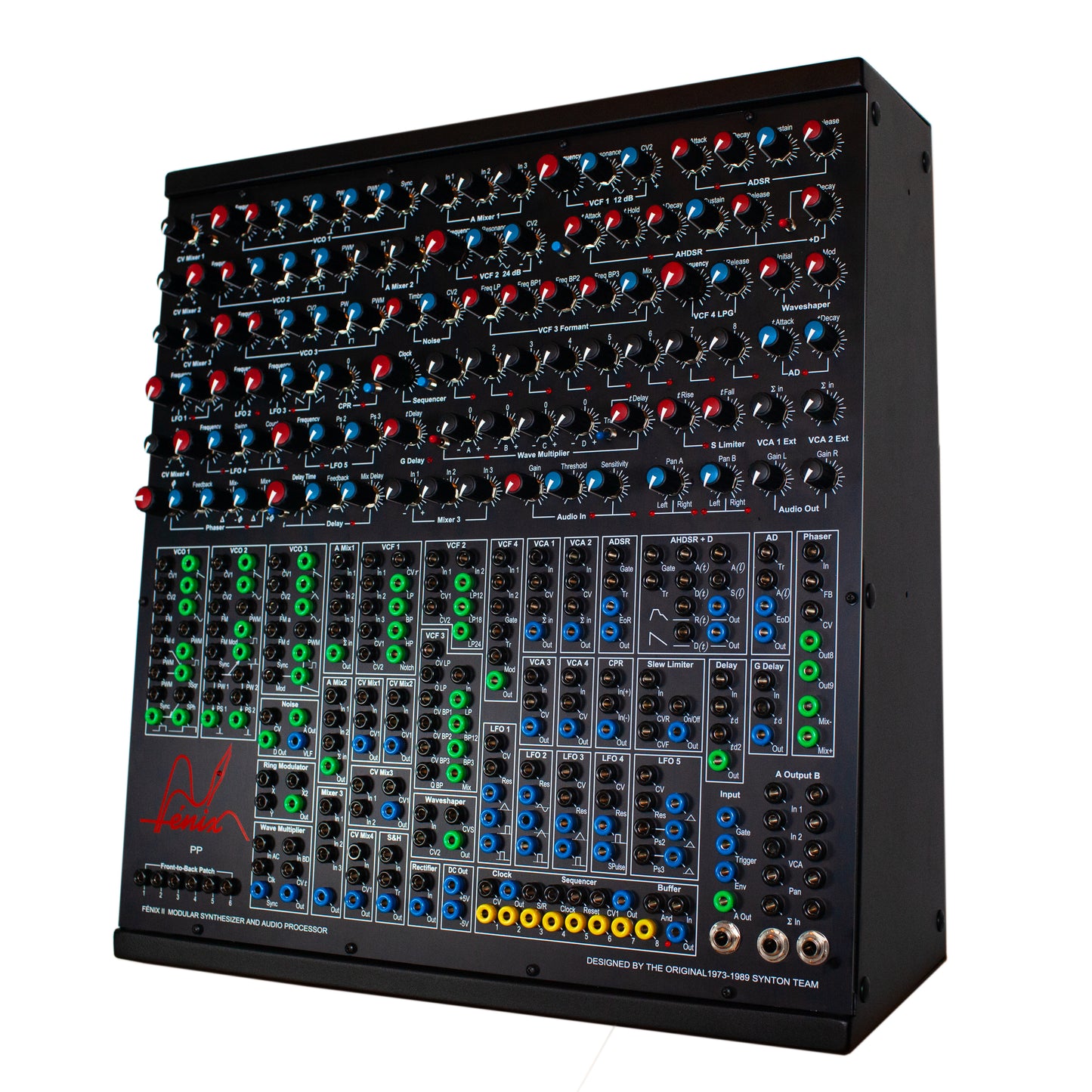

Fénix II PP (Synthesizer)

Patch Point is producing 100 Fénix II PP analog modular synthesizers in small batches.

The Fénix II PP is a direct descendant of the Fénix II in collaboration with the designer, Bert Vermuelen of the original Synton design team.

It is a fully analog synthesizer, with the same components as the original Fénix II, with some upgrades.

VCF3 - Formant Filter - a new modern design using chips instead of vactrols which allows for voltage controlled resonance and an expanded frequency range.

VCF4 - LPG - a new modern design using chips instead of vactrols which allows for an expanded frequency range, and quicker response, and more accurate control of the length parameter.

Delay - The Delay is now a dual delay with a 3rd switch position. delay 1, delay 2, or in the middle both delays mixed!   with the additional jack of a second frequency parameter for the 2nd delay.   You can now CV control both delays pitches with a separate jack.

3 VCO’s, 3 different VCO's ( Inputs CV, FM, PWM, Sync e.o, Output square, triangle, sawtooth and some has pulse, sub, sine e.o) )

4 different VCF´s ( SVF, 24dB Lp, BPF, 12dB Lp). ( Input CV modulation, SVF has Q-CV control

3 EGR and 4 VCA’s and 5 LFO’s. (Many modules are voltage controlled)

7 Mixers ( 3 audio mixers and 4 DC-Audio mixers).

1 Phaser and 1 Delay (BDD). ( off course voltage controlled)

1 8 step analog sequencer with own clock.

1 Waveshapers, 1 wavemultiplier and 1 full wave rectifier. ( voltage controlled, except for the rectifier )

1 CPR, 1 S&H, 1 Gate delay, 1 Ringmodulator, 1 Slew limiter, 1 fixed +/- 5volt output.

1 Analog noise and 1 Digital noise. ( Digital noise voltage controlled

1 6 Banana to 3,5 mm minijack connectors.

1 Input module with trigger, gate and envelop out.

1 Stereo output module with dual panning and dual VCA. ( off course voltage controlled)

Need further info? Please read the manual.
