RME

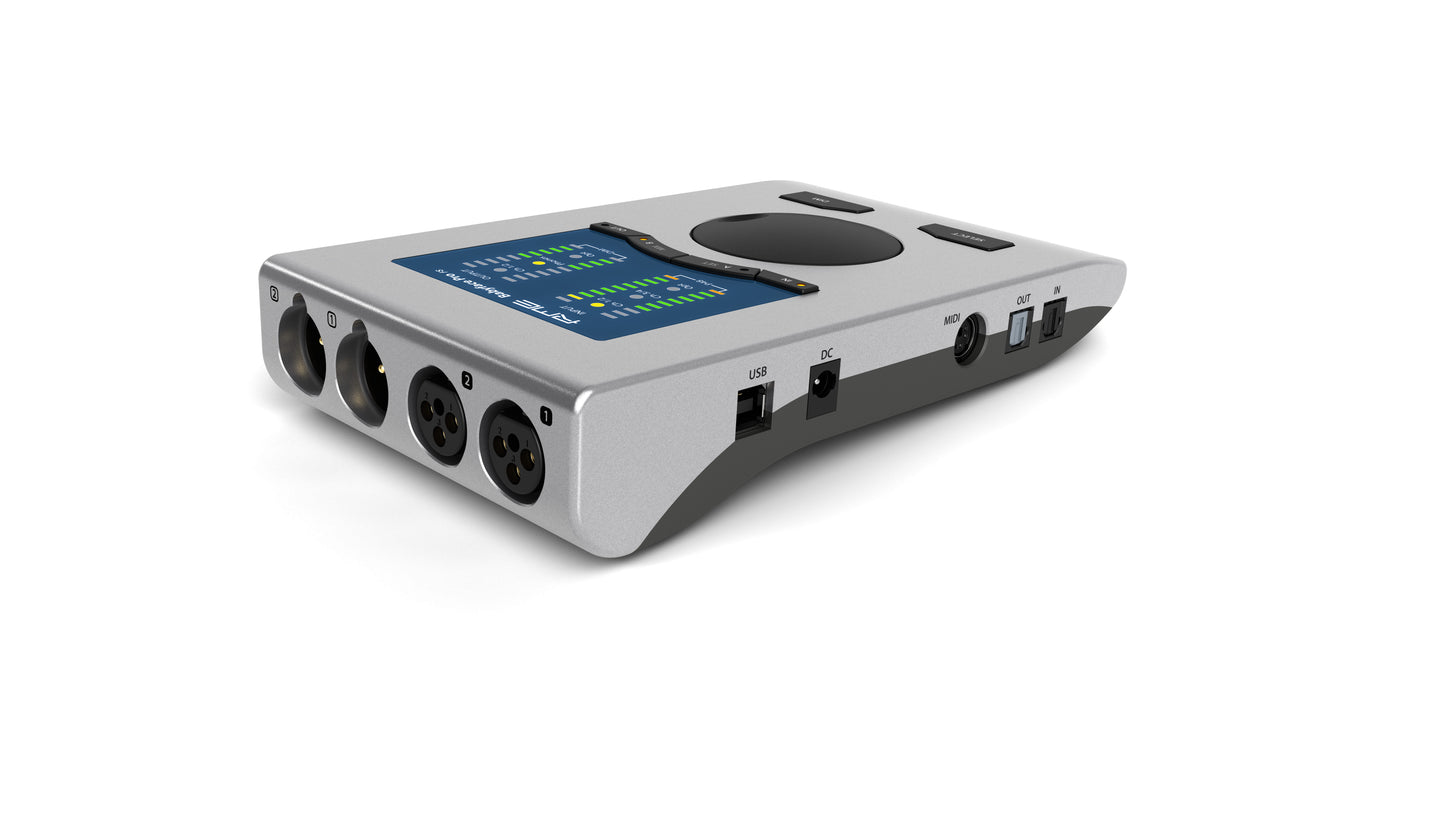

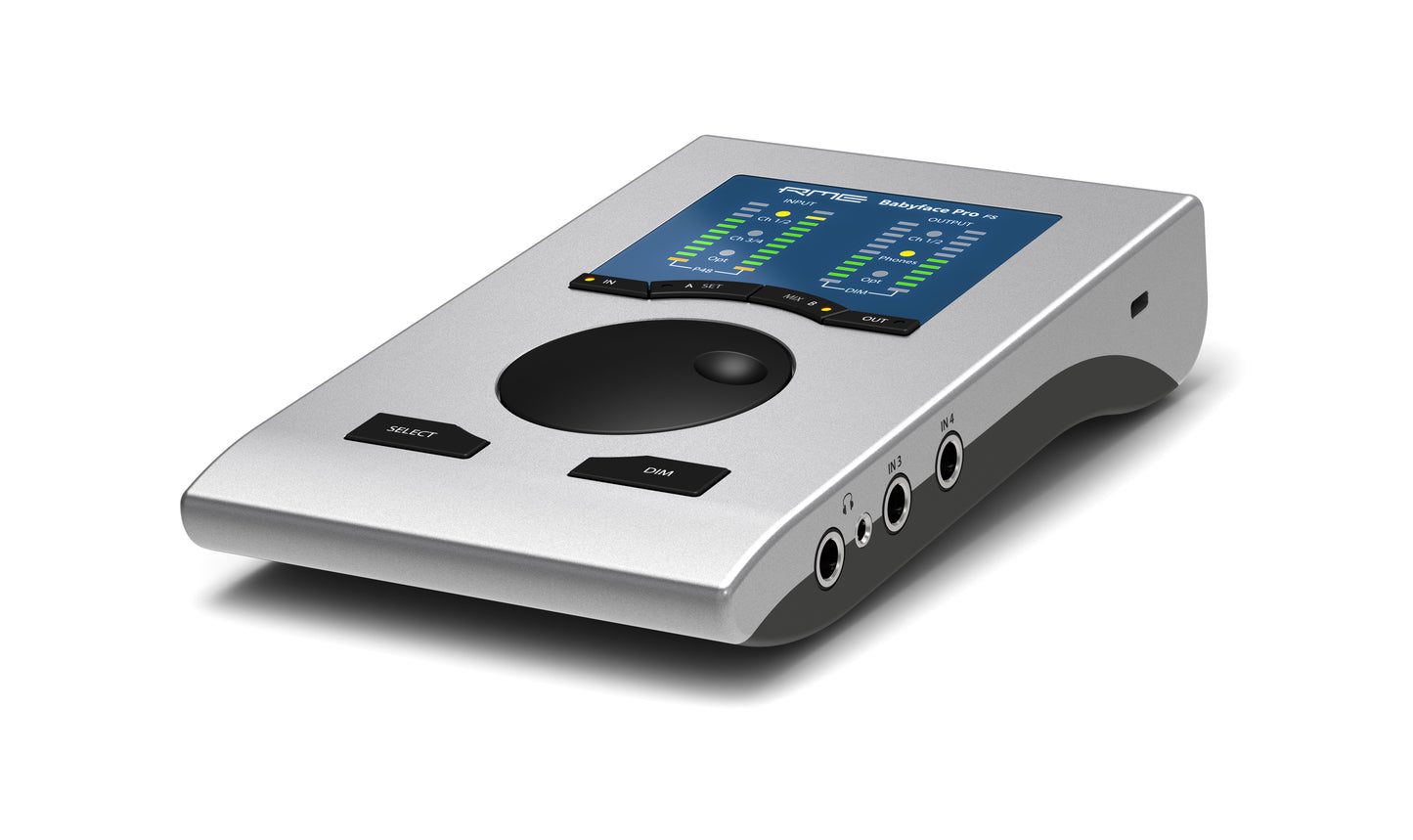

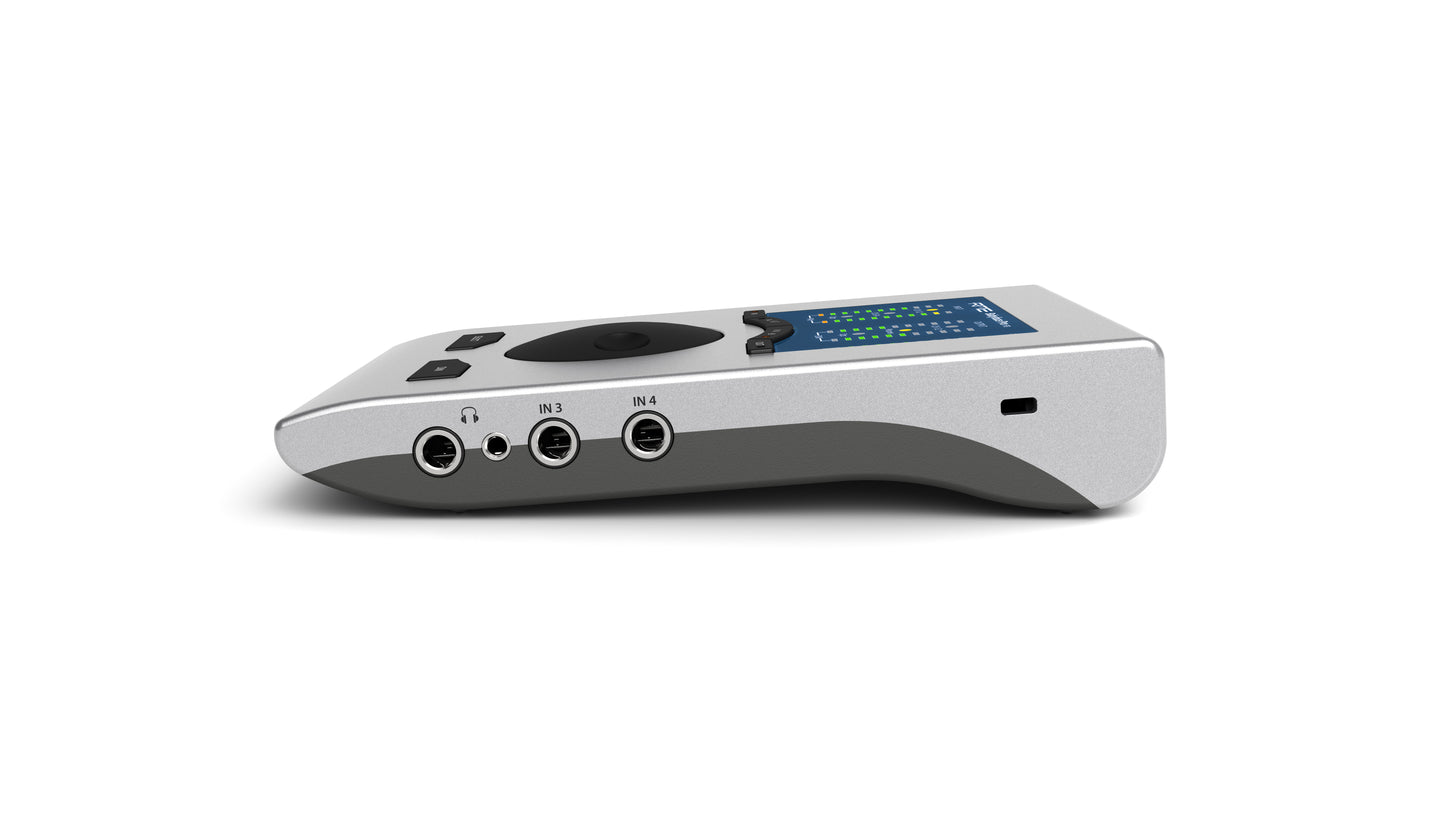

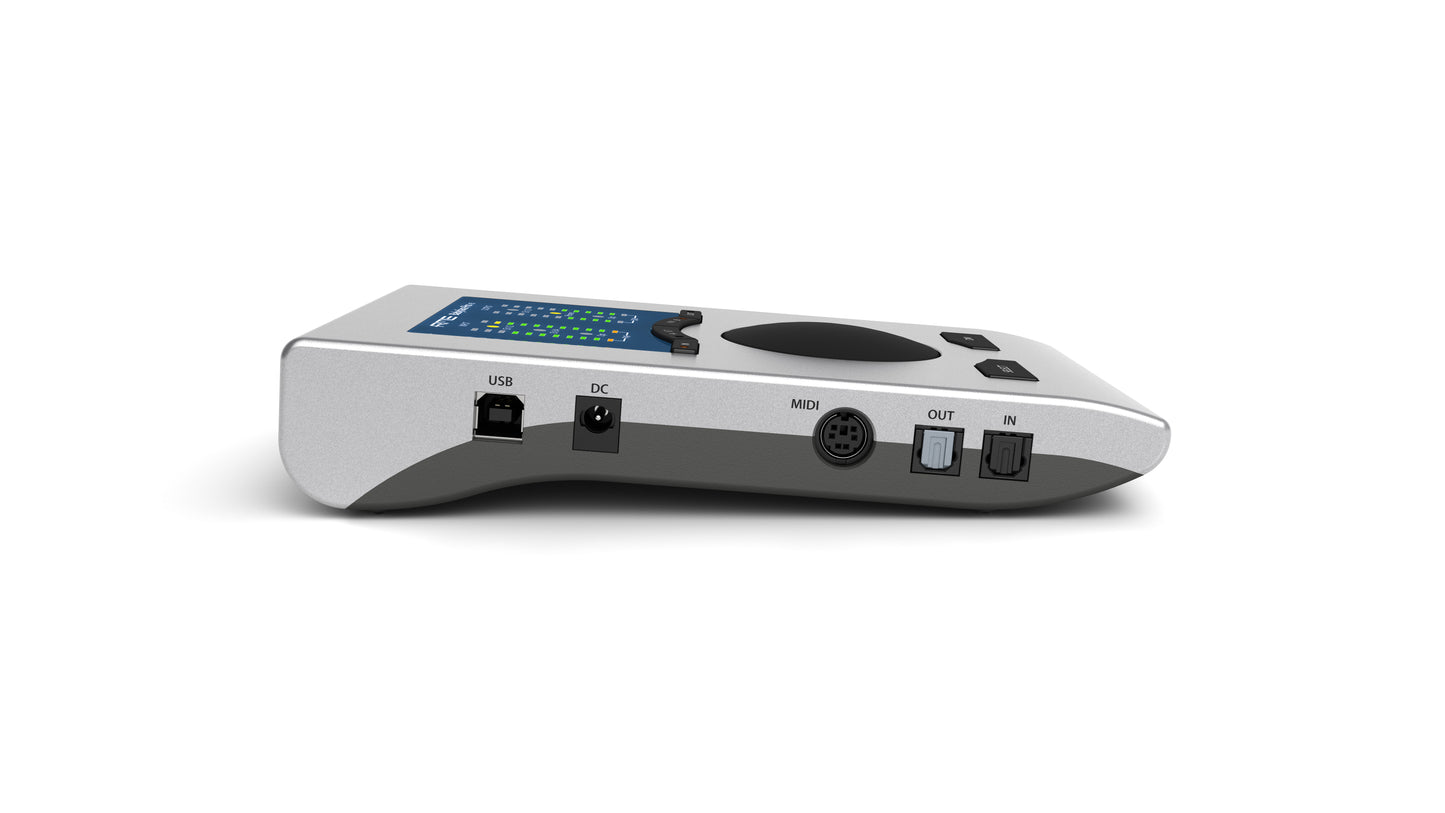

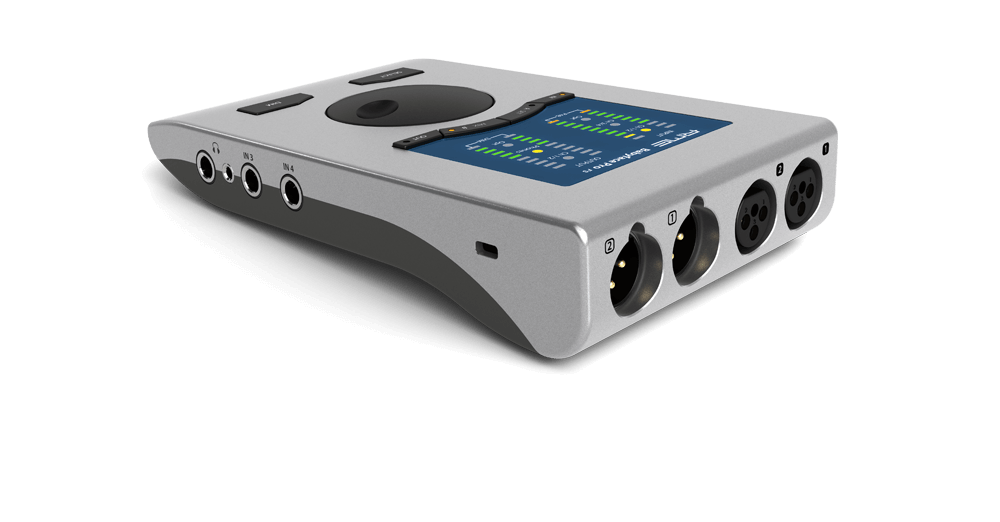

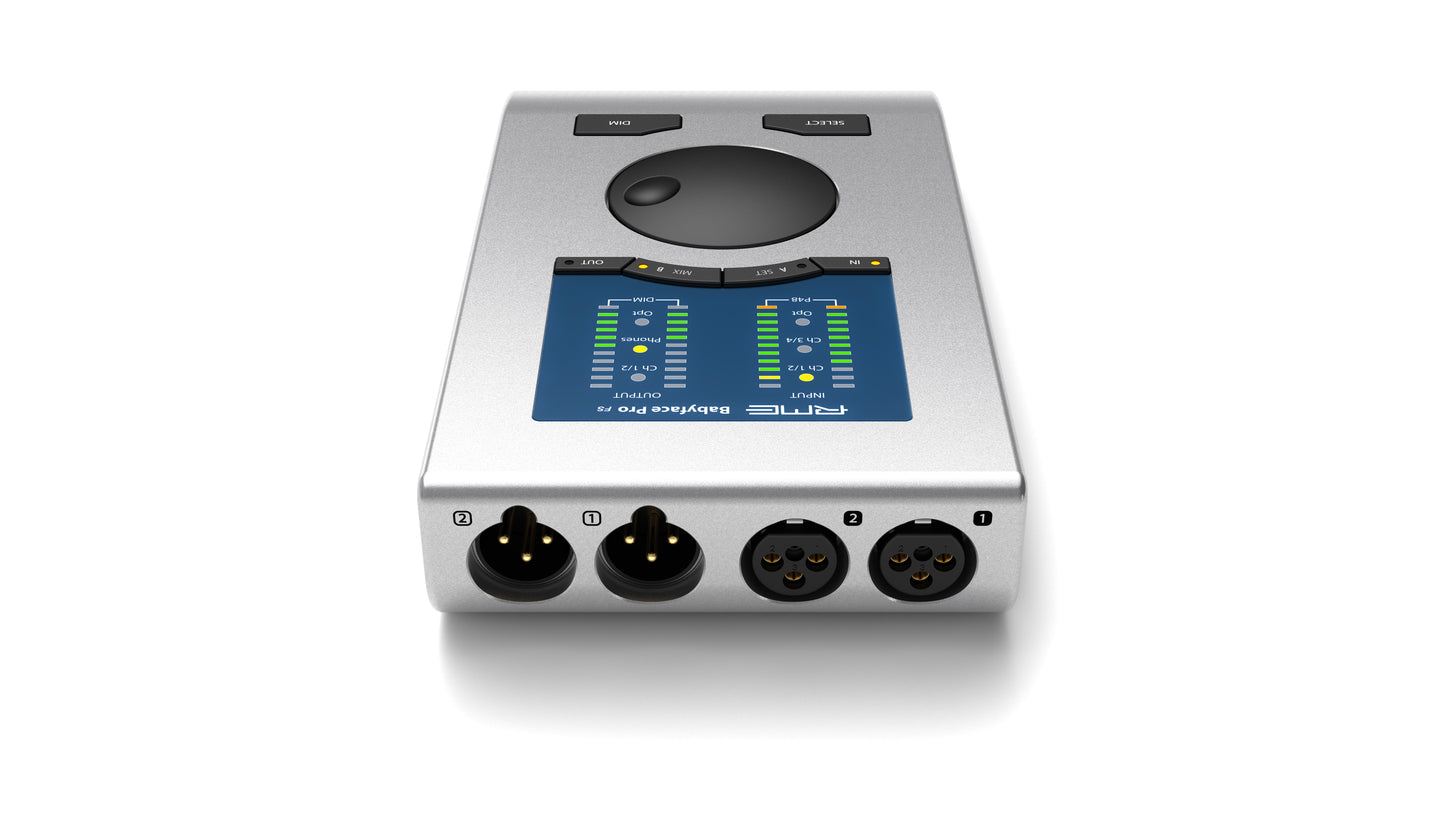

Babyface Pro FS

Babyface Pro FS

Prezzo di listino €688.24 EUR
Prezzo di listino Prezzo scontato €688.24 EUR
In offerta

Products

Babyface Pro FS


24-Channel 192 kHz bus-powered USB Audio Interface


Four years ago the Babyface Pro again demonstrated RME’s absolute commitment to superior craftsmanship, not only in audio circuits and driver development, but also in mechanics. Created with the highest precision from a block of aluminum, this high-end portable interface incorporated newly designed analog and digital circuits. Its innovative energy saving technologies provided supreme fidelity with no compromises in level, noise or distortion.

In the new Babyface Pro FS even more improvements were implemented:

  • +19 / +4 dBu switch on the bottom adds a direct way to reduce the output level, thus improves SNR for sensitive active monitors, avoids distortion / overload, and helps to keep TotalMix FX faders near 0 dB instead of high attenuations.
  • Full SteadyClock FS circuit as in the ADI-2 Pro FS for lowest jitter and highest jitter immunity.
  • 3.5 mm TRS phones output power rises from 70 mW to 90 mW. THD of both phones outputs improved by up to 10 dB. Uses same output op-amps as ADI-2 Pro now. Output impedance of 3.5 mm TRS lowered from 2 Ohms to 0.1 Ohms.
  • Mic inputs SNR improved from 112.2 dB to 113.7 dB, TRS Line inputs SNR improved from 114 dB to 116.3 dB (120 dBA). THD Line inputs improved by 8 dB.
  • 6 samples less latency on the AD side by new ADC (5 samples AD, 7 samples DA. It won't get quicker...).
  • All the above improvements were achieved without raising the units power consumption.
  • K-slot for theft protection.

Specs

Babyface Pro FS


Analog

AD, Microphone/Line 1-2

  • Input: XLR, electronically balanced
  • Input impedance balanced: 2 kOhm, 5.2 kOhm with PAD
  • Input impedance unbalanced: 1 kOhm, 2.6 kOhm with PAD
  • Signal to Noise ratio (SNR): 113,7 dB RMS unweighted, 117 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 18 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 7 Hz – 45.8 kHz
  • Frequency response @ 192 kHz, -1 dB: 5 Hz – 88 kHz
  • With PAD active : -0.1 dB 8 Hz, -0.5 dB < 4 Hz, -1 dB < 3 Hz
  • THD: < -112 dB, < 0.00024 %
  • THD+N: < -108 dB, < 0.00035 %
  • THD @ 30 dB Gain: < -115 dB, < 0.00016 %
  • THD+N @ 30 dB Gain: < -100 dB, < 0.001 %
  • Channel separation: > 110 dB
  • Gain range: -11 dB up to +65 dB
  • Maximum input level XLR, Gain 0 dB: +8 dBu, PAD +19 dBu
  • Maximum input level XLR, Gain 65 dB: -57 dBu, PAD -46 dBu

AD, Line/Instrument In 3-4

As Microphone/Line 1-2, but:

  • Input: 6.3 mm TS jack, unbalanced
  • Input impedance: 1 MOhm
  • Signal to Noise ratio (SNR): 116 dB RMS unweighted, 120 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: < 3 Hz – 45.8 kHz
  • Frequency response @ 192 kHz, -1 dB: < 2 Hz – 92 kHz
  • Maximum input level @+4 dBu, Gain 0 dB: +13 dBu
  • Maximum input level @-10 dBV, Gain 9 dB: -5 dBu

DA, Line Out 1-2

  • Dynamic range (DR): 115 dB RMS unweighted, 118 dBA
  • Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
  • Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
  • Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
  • THD: - 106 dB, 0.0005 %
  • THD+N: -102 dB, 0.0008 %
  • Channel separation: > 110 dB
  • Output: XLR balanced
  • Output impedance: 300 Ohm balanced, 150 Ohm unbalanced
  • Output level @ 0 dBFS: Balanced +19 / +4 dBu, unbalanced +13 / -2 dBu
  • DC @ 0 dBFS: 6.35mm 4.8 V, 3.5mm 2.4 V, XLR bal. 9.6 V

DA, Phones 3/4

AS DA Line Out, but:

  • Output: 6.3 mm TRS jack, unbalanced
  • Output impedance: 10 Ohm
  • Output level at 0 dBFS, 1 kOhm load: +13 dBu
  • Max power @ 0.1% THD: 60 mW
  • Signal to Noise ratio (SNR): 114.8 dB RMS unweighted, 118 dBA
  • Noise level: -101.8 dBu
  • Output: 3.5 mm TRS jack, unbalanced
  • Output impedance: 0.1 Ohm
  • Output level at 0 dBFS, 1 kOhm load: +7 dBu
  • Max power @ 0.1% THD: 90 mW
  • Signal to Noise ratio (SNR): 114 dB RMS unweighted, 117 dBA
  • Noise level: -107 dBu

MIDI

  • 1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks
  • Galvanically isolated by optocoupled input
  • Hi-speed mode: Jitter and response time typically below 1 ms
  • Separate 128 byte FIFOs for input and output 25.3

Digital

  • Clocks: Internal, ADAT In, SPDIF In
  • Jitter suppression of external clocks: > 50 dB (2.4 kHz)
  • Effective clock jitter influence on AD and DA conversion: near zero
  • PLL ensures zero dropout, even at more than 100 ns jitter
  • Digital Bitclock PLL for trouble-free varispeed ADAT operation
  • Supported sample rates: 28 kHz up to 200 kHz


Digital Inputs

ADAT Optical

  • 1 x TOSLINK
  • Standard: 8 channels 24 bit, up to 48 kHz
  • Double Speed (S/MUX): 4 channels 24 bit 96 kHz
  • Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz
  • Bitclock PLL ensures perfect synchronisation even in varispeed operation
  • Lock Range: 31.5 kHz – 50 kHz
  • Jitter suppression: > 50 dB (2.4 kHz)


SPDIF optical

  • 1 x optical, according to IEC 60958
  • Accepts Consumer and Professional format
  • Lock Range: 27 kHz – 200 kHz
  • Jitter suppression: > 50 dB (2.4 kHz)


Digital Outputs

ADAT optical

  • 1 x TOSLINK
  • Standard: 8 channels 24 bit, up to 48 kHz
  • Double Speed (S/MUX): 4 channels 24 bit 96 kHz
  • Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

SPDIF optical

  • 1 x optical, according to IEC 60958
  • Format Consumer (SPDIF) according to IEC 60958
  • Sample rate 28 kHz up to 200 kHz

General

  • Power supply: USB bus power or external power supply
  • Idle power consumption: 2.8 Watts
  • Typical power consumption: 3.7 Watts
  • Max. power consumption: 5.4 Watts
  • Current at 5 V bus power operation: 700 mA (3.7 Watts)
  • Current at 12 V external power: 313 mA (3.7 Watts)
  • Dimensions (WxHxD): 108 x 35 x 181 mm (4.25" x 1.4" x 7.1")
  • Weight: 680 g ( 1.5 lbs)
  • Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
  • Relative humidity: < 75%, non condensing
