Mocante
Mocante
Couldn't load pickup availability
Comes with Universal PSU and Wood Case!
In Stock
The IFM keyboard includes Mocante
Mocante:
The Mocante module is a crossover from the Tocante series of touch-instruments, geared for Eurorack by Mobenthey. It features a twenty-four operator array of oscillators- in this case phase analysis units- tuned by capacitor series in the Tocante scale. As a touch controller, it outputs a control voltage representing the unique tunings of this scale, a gate signal, as well as a host of witches-tones and square-drones that derive from the Phase Lock Loop (PLL) machineries within.

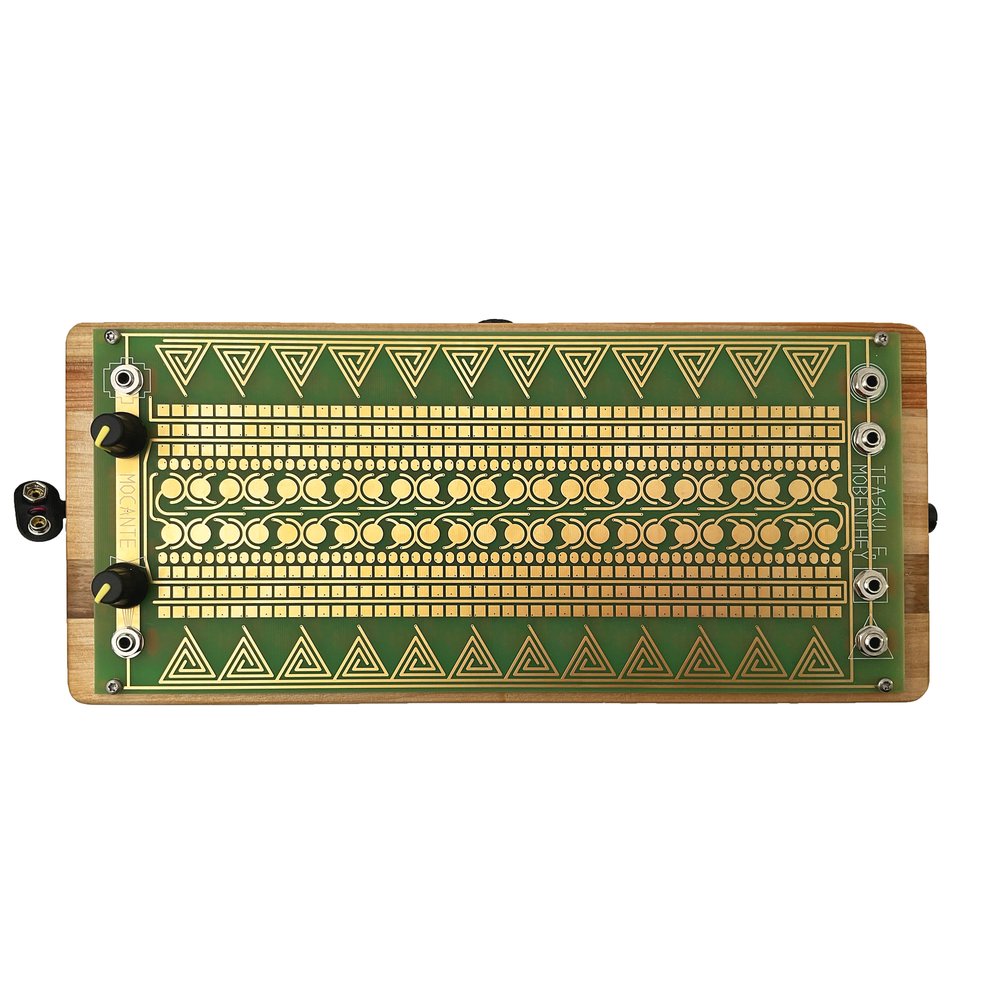

Mocante is the first of Mobenthey's ultra-raftable modules series, featuring all circuitry and the front panel on one circuit board. The final module thickness is only as deep as the 3.5mm jacks and potentiometers- not more than about a centimeter, so it can fit in a thin wooden case similar to those used for the Tocante instruments proper.
Mocante is a 54HP Eurorack module that runs on +12 and -12 volts. Actually it completely shuns the negative twelve volts, and thus it can run from a unipolar, plus twelve supply. This helps make it raftable, as it only requires a branch power line from the increasingly common 12V trunk. Thus, when ordered with a woodencase, it has a 2.1mm, tip positive, 12 V jack to power it. Also, it can be powered by 9 volt battery. If ordered without a case, for Eurorack mounting, it will come with a power connector traditional to that format.
Mocante has three main areas of touch:
• Triangle Touch is the traditional touch controller, associated with the CV and Gate outputs. When
untouched, the CV outputs an undefined voltage, and Gate outputs a logic low (about 0.4 volts). When
touched, the CV outputs a voltage proportional to the frequency of the operator, and Gate goes high
(between 4 and 7 volts).
• Squares Touch takes the ultrasound machinery of each operator and octave shifts it into audible and subaudible
ranges. When touched, they manifest an output at “Square Drones.” That jack is unbuffered so it
can potentially act as input, to insert a signal into the toucher traces.
• Circular Touch is the most ephemeral, associated with the hard and soft witches-tones outputs. It enables the ultrasound signals at each operator to heterodyne with others, creating audible whistling sounds and other noises... Soft witches-tones use heterodyne phase comparison to generate sweeter, sine-like sounds, whereas hard witches-tones use phase-lock pulses to make sawtooth forms.
Interrogajoke Manifesto
In order to propel the new ultra-raftable line of Mobenthey modules, a focus has been identified: that of the touch controller. An insider of the synthesizer clearing house has made this clear. The interrogajoke concept was formed to interrogate and also play about the touch interface. Is it a piano? How does it feel the finger? How does the finger feel it?
The most compelling question is the middle one; most touch devices use a high frequency signal that courses through the fingers and senses their capacitance. Although this is a signal, the module neglects it as unseemly ultrasound and denies it sonic presence. That is the core of the interrogajoke- how to give sonic presence to capacitive sensing waves. The toucher is a body without organs- it is not filled with knobs and switches that demand legends, but rather the cryptic runes inspired by sensor fields. As such, it is a place for bumbling fingers, not the precise en-goaled tweaker.
