Patch Point

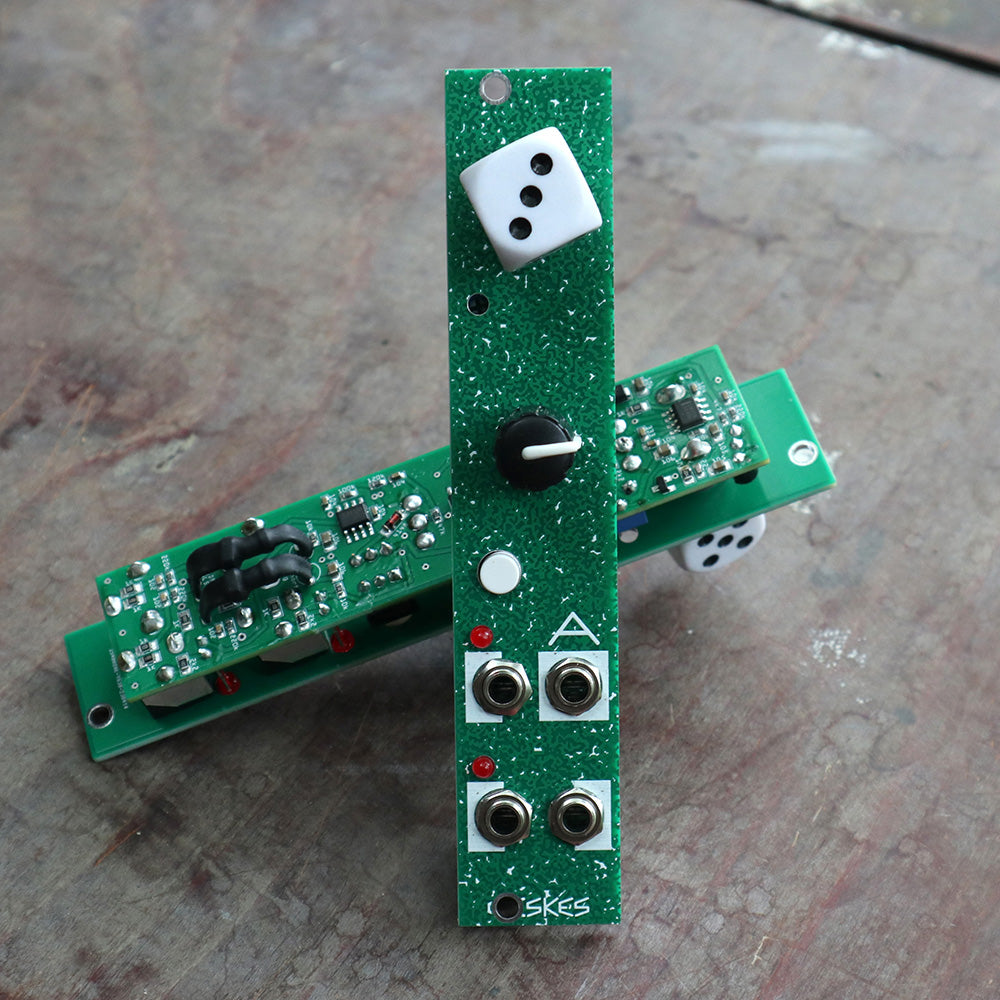

Dice

Dice

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
DIY KIT
Dice Manual:

Dice is a SPST switch that uses Vactrol based low pass gates to switch. They are not buffered and are made to switch in all dicectios like a physical switch or relay, but then with the LDR delay effect.
It switches on a lowpass filtered and then comparated white noise signal, this makes it switch more or less often, the filter is set with the dice.
There is also a output for the noise, this sounds a bit like hard rain drops, this is why i called the module dice, which is dutch for rain. This signal goes slightly negative voltages to about 9v positive.

Specification:
+12v (Power consumption should be not much, maybe 40ma)
-12v (maybe 20ma?)
Width is 5HP

https://www.youtube.com/watch?v=pQ9BGVbLzJ8&ab_channel=GijsGieskes
